Mini-Gen single phase alternator kit
Educational wind turbine kit

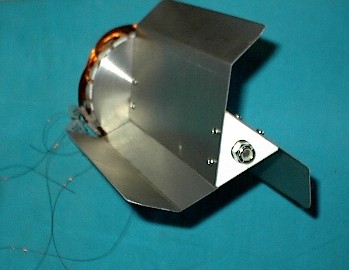

turbine assembled2.jpg (21068 bytes)
Kit parts2.jpg (38207 bytes)
An educational 3 phase turbine kit.  Comes with everything you need to create a 3phase wind turbine.  Great for science projects, learning about 3phase PMG alternators, and alternative energy.  The kit includes 6 very powerful neodymium magnets.  Check it out!


6ft turbine2.jpg (76734 bytes)
The original 6 ft turbine with a car alternator and chain drive.   It was changed to the axial Flux type alternator and ended up being much more efficient and powerful.  The chain drive was quite noisey because of the cogging in the modified alternator.  It was in service for about 2 years and is now down for maintenance.  Actually it will be refitted with a new alternator using the new magnets and the blades refurbished.
44 on pole.jpg (31829 bytes)

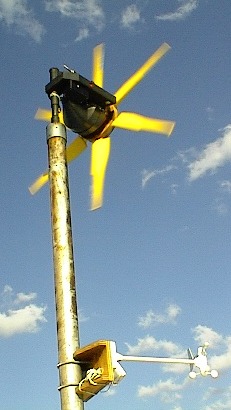

The downwind turbine, a very small but quite efficient little unit.   This one was a bit more complicated to build but it features the star/delta controller ( check the link on downwind turbine for more detail)
alt mod parts.jpg (44636 bytes)
One of the original alternator modifications.  This one had a rewound stator and the modified rotor
using Neo' magnets.
setstats
Windstuffnow.com
Old projects that may be of interest
Comes with everything to assemble it as shown
The Lenz 2 turbine
As a dedicated "do it yourselfer" I put this site up for all those who share similar DIYS skills and convictions.
I hope what I have here helps you in your endeavors in some way, big or small.
This site is maintained using windpower and Solar.
If you have any question you can Email me at
  elenz(at)windstuffnow.com
      Please include in the subject line something relating to wind or this site or it may simply be deleted.
Thanks for dropping by and Welcome !
